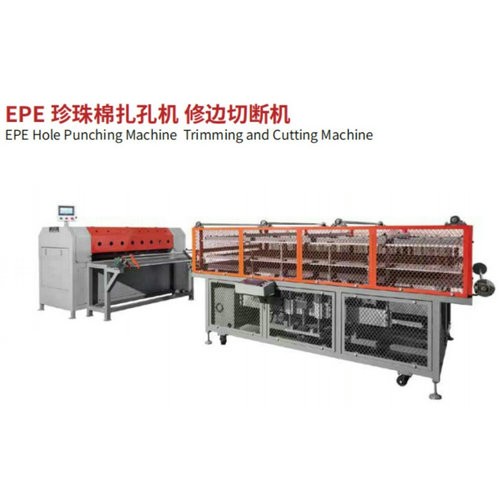

EPE punching cutting machine

Product model：epe-c
Feature: semi automatic
Delivery：15~20 days
Material：epe foam rolls sheet
Description:epe foam punching machine, trimming machine, cutting machine;used for slitting and cutting EPE roll materials with different sizes at the same time. The operation is simple and high productivity with precise size

Total Power：4KW

The min. cutting thickness: 10-100 MM

The min. cutting width: 2000MM

Traction Roller spec. 2200*130MM*4

Traction Speed 0-120 r/m

Vertical movable blades (can install with 12 blades) 3-6 pcs

blade dia. 350MM

Horizontal movable blade (gas control) 1pcs (can install with 2 pcs)

Blade length 200-250MM

working speed 7.6 M /(minute)

Drive Motor Power 1PCS 2.2 KW

Rotate speed 1400 r/m

Dimension 3000*2400*1100

Weight 800KG

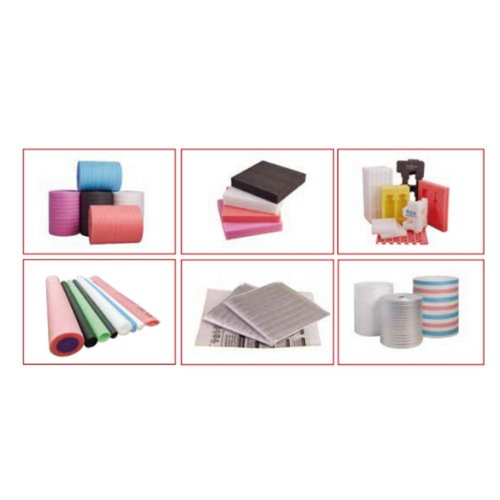

epe foam punching machine, trimming machine, cutting machine; The products made by this equipment are widely applied to packing industry:electronic circuit board,high-grade furniture,motorcycles,shoes-making,hardwares,automobiles and so on.
