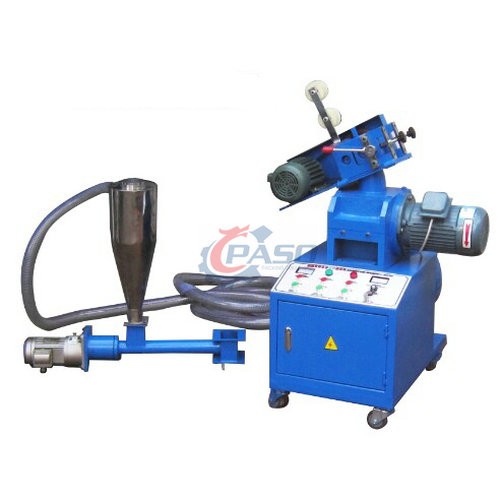

edge trimmer recycling machine

Model: 160/180

Main motor: 1.5kw

Rotary blade Dia.: 175mm

Blade Length: 180mm

Blade number: 3+2

Fan power: 1.1kw

Traction width: 10-80mm

Working capacity: 25-70kg

Feeder power: 0.4kw

Separation Dia. 250-300mm

Traction motor: 0.4kw

Overall size: 850mm*700mm*1300mm

Weight: 265kg

Automatic edge material film online recycling machine
Equipped with air bubble film machine, or stretch film extrusion machine
Usage: more than 45MM screw extruder, recycling scrap, scrap before the film did not change the physical properties of 100% random ( crushing and recycling ) reuse.
Scope: For a thicker, wider, faster PP, PE, HIPE, LOPE, shrink closing film, PE cling film, etc., Processing functions: thickness 0.06-1.2MM / width 80MM less scrap
Machine features: It is suitable for the casting film machine, calendar, sheet extruder line, automatic block machine to extrude a variety of soft and hard edge material in the production process cutting and take recovery and crushing, then transfer to the cyclone separator through a wind turbine, and then escorted by the feed screw into the extruder screw feed port and automatic mixing with the new material to achieve the result of automatic recovery.
Application: More suitable for the thickness of 0.02~5mm various of soft and hard edge material, (the material of PVC, PET, PE, PP, PS, GPPS, PMMA, etc. Sheet, plate, film side material)

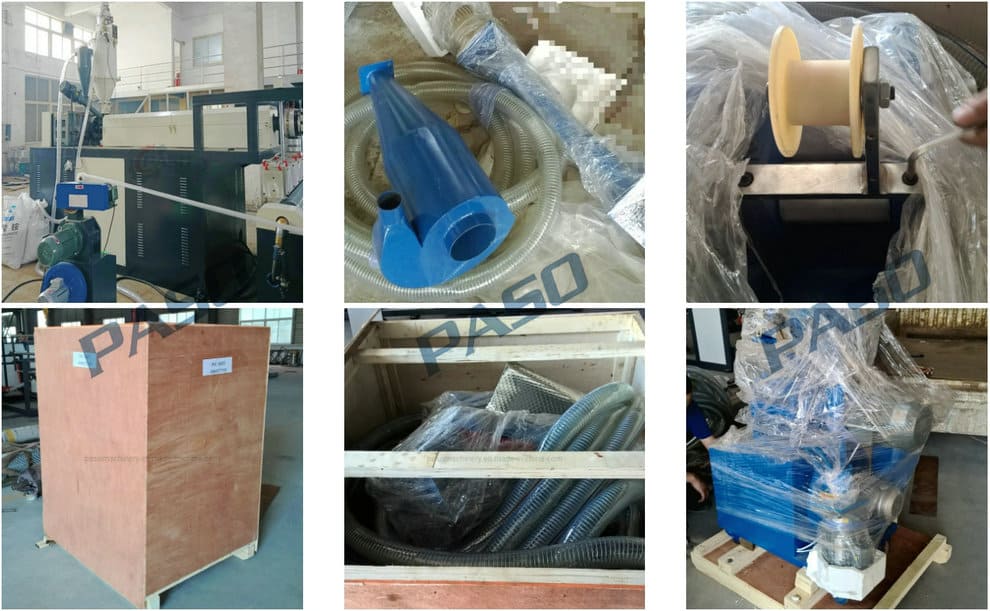

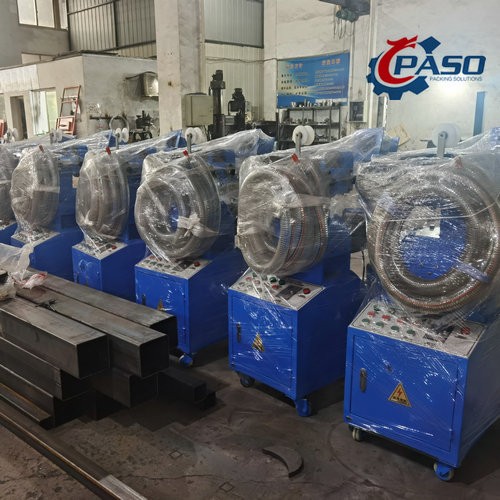

Workshop show
