stretch film rewinder machine

Product model：500mm reminder
Feature: Semi-auto, fully-auto
Delivery：15-20 days
Material：stretch film, cling film

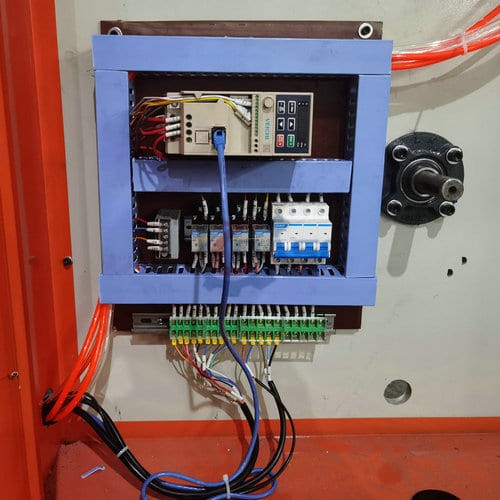

Description：big jumb rolls to small rolls winding system, plc control, auto paper core loading and unloading

Width of finished product	RW-M500
Power of motor	1.5KW
Mechanical linear speed (max)	500 m/min
Roll Laying Mode	By hand
Diameter of parent roll(max)	Φ400mm
Width of parent roll (max)	500mm
Core specification of parent roll	3"
Width of sub-roll	500mm
Diameter of sub-roll (max)	Φ300mm
Core speciation of sub-roll	3"、2"、1"
Dimensions (L×W×H)	1.4×1.1×1.1m
Weight	500 Kg

It is a kind of multifunctional machine integrated with slitting and rewinding. It mainly slits large-sized stretch film into small ones which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.

Fully automatic Stretch film rewinding machine is used to rewind the bigger diameter rolled film into smaller diameter. It is a kind of multi-function machine integrated with rewinding. Meter-counting and automatic out-off. It's mainly used to rewind jumbo rolls into small rolls, which corrects the split-level film and improves the technical indexes, such as level and quality etc.

stretch film machinery_1000.jpg

Automatic two layers co-extrusion model 1500mm PE stretch film production testing video with slitting online, finished in three rolls; online cutting winder system, with full plc control system for operation, smart control for operator's job.

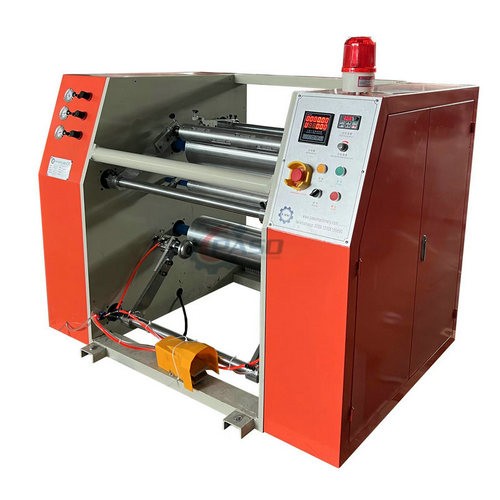

Fully Automatic Stretch Film and Cling Film Rewinder Machinery

rewinder machine.jpg
